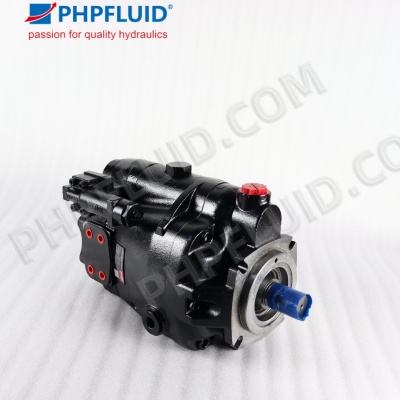

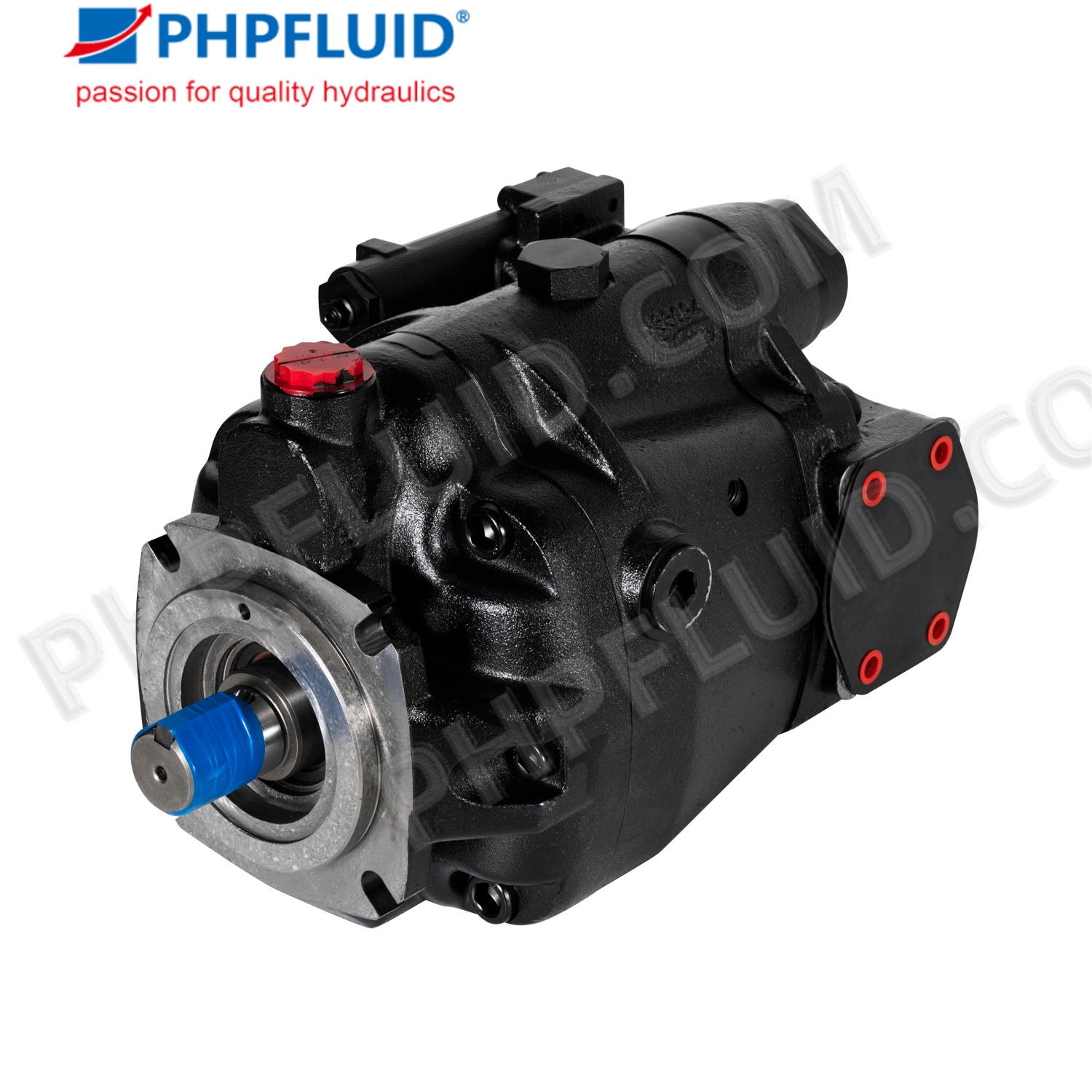

Genuine Vickers by Danfoss PVM131 and PVM141 Hydraulic Piston Pumps
| PRODUCT DESCRIPTIONS
Vickers by Danfoss PVM131 and PVM141 Hydraulic Piston Pumps | PVM Variable Displacement Piston Pumps Design Code B
The genuine Vickers by Danfoss PVM131 and PVM141 are PVM Series variable displacement open circuit axial piston pumps with Code B design. A variety of control options allows the pumps to perform most efficiently in a specific application. Efficiently of the pump controls allows down-sizing of system cooling needs, saving up front cost in the machine. Alternatively, cooling capacity could be kept the same and the flow capability of the system increased, thus improving performance and customer satisfaction.
The genuine Vickers by Danfoss PVM131 and PVM141 pumps also contain a strong proven rotating group allowing the pumps to handle pressures up to 315 bar (4568 psi) continuous with less maintenance cost. High-load carrying capacity bearings and a stiff drive shaft help provide very long life at rated industrial conditions, reducing operating costs and extending operating life.
| PRODUCT SPECIFICATIONS
Model Series | PVM131 | PVM141 |
Geometric Displacement | 131 cm³/r [8.00 in³/r] | 141 cm³/r [8.60 in³/r] |
Maximum Operating Speed | 1800 r/min | 1800 r/min |
Maximum Nominal Pressure | 315 bar [4,568 psi] | 230 bar [3,300 psi] |
Max torque at 280 bar (4000psi) | 596 Nm (lb-ft) [440 r/min] | 497 Nm (lb-ft) [367 r/min] |
Approx Weight | 66 kg [145 lb] | 66 kg [145 lb] |
| MODEL OPTIONS
PVM131 Series |
PVM131ER09GS2C315200001AB 12025250 |
PVM131ER09GS2A315000001AB 12004562 |
PVM131ERO9GS2C315200001AB-0000 12025250 |
PVM131ER09GS2E000200001AB-0000 12038626 |
PVM131ER10GS2A315000000AB 123AL00061B |
PVM131ER10GS2A315000001AB 123AL00030B |
PVM131ER10GS2C315110000AB 123AL00062B |
PVM131ER10GS2C315110001AB 123AL00031B |
PVM131ER10GS2C315200000AB 123AL00063B |
PVM131ER10GS2C315200001AB 123AL00032B |
PVM131ER10GS2E00020000EAB 123AL00033B |
PVM131ER11GS2C31520000EAB 123AL00034B |
PVM131ER13GS2A07000000AAB 12007162 |
PVM131ER13GS2A315000000AB 12009528 |
PVM131ER13GS2A315000001AB 123AL00037B |
PVM131ER13GS2A315000001AB-AS00 123AL00035B |
PVM131ER13GS2C315200000AB 123AL00065B |
PVM131ER13GS2C315200000AB-AS00 123AL00064B |
PVM131ER13GS2C315200001AB 123AL00038B |
PVM131ER13GS2C315200001AB-AS00 123AL00036B |
PVM131ER13GS2C31520000AAB 123AL00039B |
PVM131ER13GS2E00020000EAB 123AL00040B |
PVM131ER13GS2L315200400AB 123AL00066B |
PVM131ER13GS2L315200401AB 123AL00041B |
PVM131ML11GS2C315200000AB-CA00 123AL00067B |
PVM131ML11GS2C315200001AB-CA00 123AL00042B |
PVM131MR10GS2A315000000AB 123AL00068B |
PVM131MR10GS2A315000001AB 123AL00043B |
PVM131MR11GS20000000001AB 123AL00082B |
PVM131MR11GS2C315200000AB-CA00 123AL00069B |
PVM131MR11GS2C315200001AB-CA00 123AL00044B |
PVM131MR11GS2L315200401AB 12016594 |
PVM131ML12GS2C315200001AB 12010940 |
PVM131MR12GS2C315200001AB 12004445 |
PVM131MR13GS20000000001AB 123AL00083B |
PVM131MR13GS2A070000000AB 123AL00070B |
PVM131MR13GS2A070000001AB 123AL00045B |
PVM141 Series |
PVM141ER09GS2A230000000AB 12007602 |
PVM141ER10GS2A230000000AB 123AL00071B |
PVM141ER10GS2A230000001AB 123AL00046B |
PVM141ER10GS2C230200000AB 123AL00072B |
PVM141ER10GS2C230200001AB 123AL00047B |
PVM141ER10GS2E000200000AB 12001979 |
PVM141ER10GS2E000200001AB 12001978 |
PVM141ER11GS2B230200000AB 123AL00081B |
PVM141ER11GS2B23020000EAB 123AL00048B |
PVM141ER11GS2C23020000EAB 123AL00049B |
PVM141ER13GS2A230000000AB 123AL00075B |
PVM141ER13GS2A230000000AB-AS00 123AL00073B |
PVM141ER13GS2A230000001AB 123AL00052B |
PVM141ER13GS2A230000001AB-AS00 123AL00050B |
PVM141ER13GS2B230200000AB 123AL00076B |
PVM141ER13GS2B230200001AB 123AL00053B |
PVM141ER13GS2C230200000AB 123AL00077B |
PVM141ER13GS2C230200000AB-AS00 123AL00074B |
PVM141ER13GS2C230200001AB 123AL00054B |
PVM141ER13GS2C230200001AB-AS00 123AL00051B |
PVM141ER13GS2C23020000AAB 123AL00055B |
PVM141ER13GS2C23020000CAB 123AL00056B |
PVM141ER13GS2C23020000EAB 123AL00057B |
PVM141ER13GS2L230200500AB 123AL00078B |
PVM141ER13GS2L230200501AB 123AL00058B |
PVM141MR13GS20000000000AB-0000 12027438 |
PVM141MR11GS2A230000000AB 123AL00079B |
PVM141MR11GS2A230000001AB 123AL00059B |
PVM141MR11GS2C230200000AB 123AL00080B |
PVM141MR11GS2C230200001AB 123AL00060B |
| PRODUCT FEATURES
• Tear drop shaped housing contains fluid borne sound and reduces operator fatigue
• Standard adjustable maximum volume screw and gage ports give the ultimate in flexibility to the engineer or service technician
• High overall efÏciency reduces operating costs
• Robust shaft bearings extends operating life and lowers maintenance costs
• Multiple port types and locations aid in flexibility of machine design
• Very low pressure ripple reduces shock in the system resulting in less leakage
| PRODUCT APPLICATIONS
• Mining machinery
• Injection molding machines
• Metal forming machines
• Oil and Gas Equipment
• Conveyor lines
• Primary metals
• Metal cutting equipment
