1. What is Parker Denison T6DM Cartridge Kits?

The T6DM Cartridge Kits are pre-assembled pumping units for Parker Denison T6DM series high-pressure vane pumps. They allow for quick field repairs without removing the pump housing. Kits include the cam ring, rotor, vanes, and pressure plates to restore factory performance.

This Denison T6DM cartridge kits replacement guide systematically introduces product features, application scenarios, model specifications, pre-order confirmation points and common FAQs, helping users complete fast, accurate and cost-effective hydraulic pump maintenance and replacement.

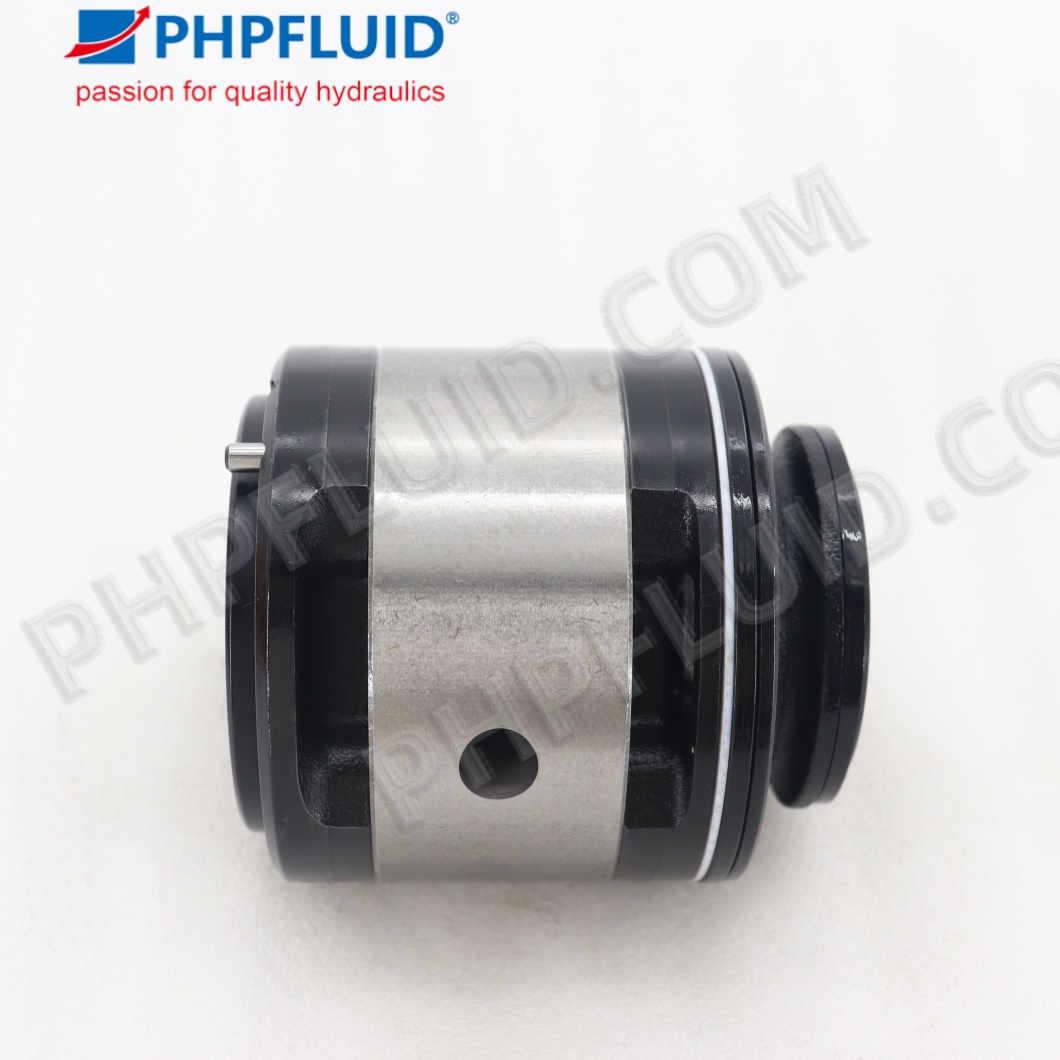

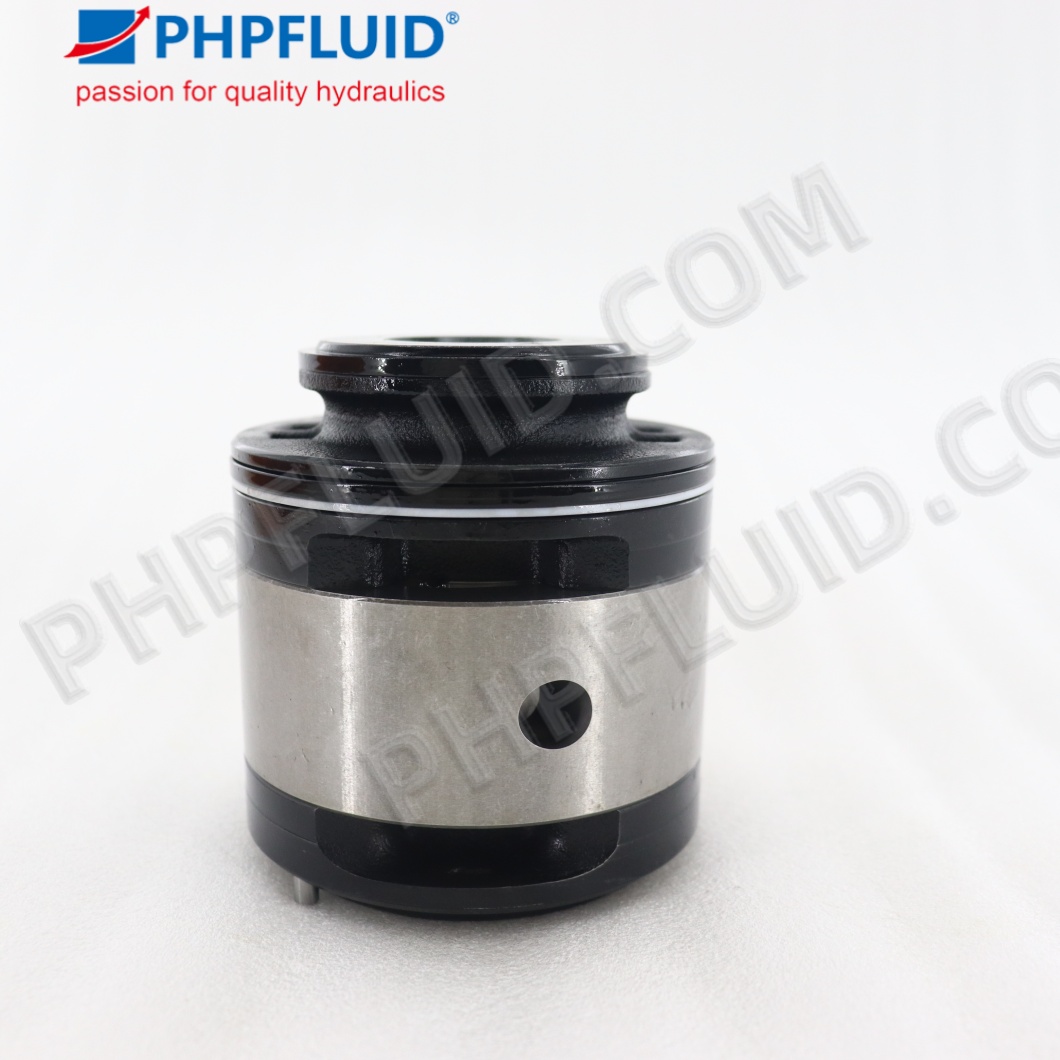

The following image shows the T6DM Cartridge Kits replacement supplied for Parker Denison hydraulic vane pumps applications.

2. Model options

The T6DM cartridge kit has complete displacement and specification options, matching all mainstream models of Denison T6DM series single vane pumps.

Main T6DM displacement options:

T6DM-B14, B17, B20, B22, B24, B28, B31, B35, B38, B42, B45, B50, B61

Key specification classification:

• Rotation direction: R (Clockwise), L (Counterclockwise)

• Working pressure grade: Standard high-pressure type, suitable for 210bar~280bar working environment

• Assembly type: Standard SAE mounting, fully compatible with original T6DM pump housing and accessories

3. T6DM cartridge kits application

These cartridge kits are critical components widely used in mobile, industrial, and heavy-duty machinery. Finding the exact kit requires matching your pump's displacement rating (e.g., 014 to 061 GPM), rotation direction, and specific mounting style.

Typical application scenarios: Construction machinery, road equipment, material handling equipment, industrial hydraulic stations, injection molding machinery and metallurgical equipment. The T6DM pump with replaced cartridge kit can maintain stable working performance under long-term continuous operation and medium and high load conditions, which is perfectly suitable for daily equipment maintenance and fault repair.

4. What to confirm before ordering?

Please confirm the following key information before ordering T6DM cartridge kits replacement parts:

• Exact pump model: Confirm the complete T6DM model code (such as T6DM-B45-1R00-C1) on the pump nameplate

• Displacement specification: Verify the B-code displacement parameter to ensure flow matching

• Shaft rotation direction: Confirm clockwise (R) or counterclockwise (L) to avoid reverse installation failure

• Working condition requirements: Confirm equipment working pressure and application scenario to select standard or heavy-duty cartridge kit

• Wear degree: Check whether the pump housing and bearings are intact; replace the cartridge kit alone for core wear only

5. FAQ

Q1: What faults can be solved by replacing T6DM cartridge kits?

A: It can effectively solve common problems including severe internal leakage, system pressure failure, slow actuator action, abnormal pump noise and reduced volumetric efficiency caused by wear of rotor, vanes and stator.

Q2: Are aftermarket T6DM cartridge kits compatible with original Parker Denison pumps?

A: Yes. Qualified aftermarket cartridge kits adopt original standard dimensions and material specifications, 100% interchangeable with original parts, with stable performance and cost-effective advantages.

Q3: Is it necessary to replace seals while replacing the cartridge kit?

A: It is recommended to replace the full set of sealing parts together to prevent oil leakage caused by aging seals, ensuring long-term stable operation of the repaired pump.

6. Send part number or pump photo for confirmation

Not sure about your model code? Send us the nameplate photo and our team will help identify the correct replacement.
